Density: 10kg/m3-48kg/m3
Thickness: 25mm-180mm
Width: Normally 1200mm
Length: 5000mm-30000mm
Facing: MBI, Aluminum Foil, Kraft Paper etc.

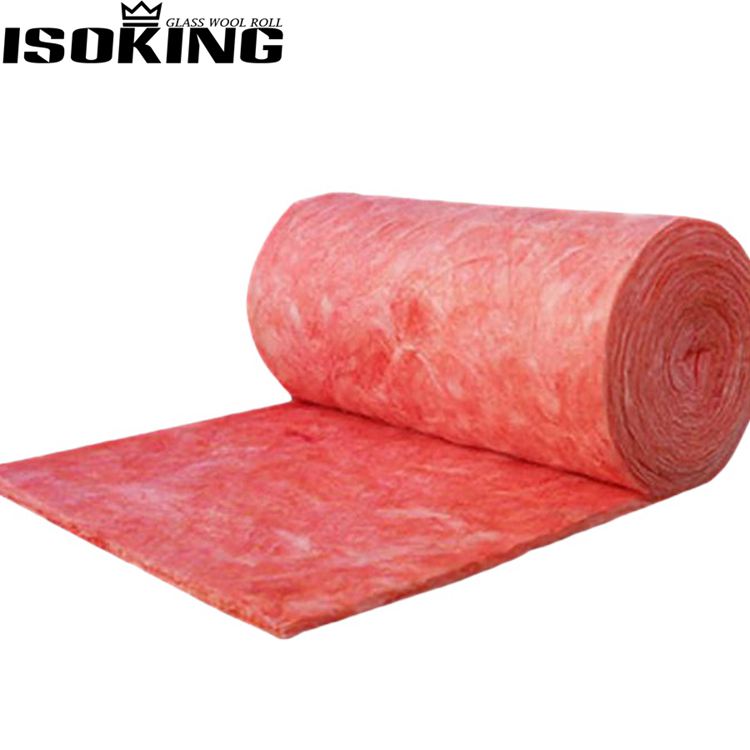

Pink Fiberglass Insulation——IKING Thermal Insulation Solution
【Product Overview】
Pink fiberglass is made of glass fiber and environmentally friendly adhesive through centrifugal spraying process. It has excellent thermal insulation, sound insulation and fireproof performance. It is specially designed for industrial equipment, building walls, acoustic engineering and other scenes. Pink provides a more beautiful environment for your building.
【Core Purpose】
|
Application fields |
Typical scenarios |
Performance requirements |
|
Industrial insulation |
High temperature pipe/storage tank/boiler insulation |
High temperature resistance (-120℃~450℃) |
|
Building energy saving |
Exterior wall insulation/curtain wall interlayer/roof insulation |
Low thermal conductivity + hydrophobic and moisture-proof |
|
Acoustic noise reduction |
Machine room/audio-visual room/air conditioning duct |
High sound absorption coefficient (NRC≥0.95) |
|
Ship engineering |
Cabin compartment/engine room insulation |
Vibration resistance + corrosion resistance |
【Normal Specification】
|
Density |
10kg/m3-48kg/m3 |
|
Thickness |
25mm-180mm |
|
Width |
Normally 1200mm |
|
Length |
5000mm-30000mm |
【Technical Parameters】
|
Property |
Performance |
Standard |
|
Maximum Service Temperature |
450℃ Outer foil temperature limited to 100℃ |
ASTM C411 |
|
Combustibility |
Non-combustible |
ASTM E84 |
|
Rigidity |
Semi-Rigid |
ASTM C1101 |
|
Shot content |
Free of shot |
ASTM C612 |
|
Fungi Growth |
Does not encourage fungi growth |
ASTM C665 |
|
NRC Value |
0.75-1.24 |
ASTM C423 |
|
Thermal conductibility |
<0.044 |
ASTM C518 |
|
Moisture absorption |
Less than 0.2%by volume |
ASTM C533 |
|
Temperature range |
Up to 233℃(450F) |
ASTM C411 |
|
Corrosivity |
Does not accelerate |
ASTM C665 |
|
Mold resistance |
No growth |
ASTM C665 |
|
Fire Test |
Flame spread<25 Smoke developed<50 Class 0 lgnitability Index 0 Spread of Flame Index 0 Heat Evolved Index 0 Smoke Developed Index 1 |
ASTM E84 BS 476 Part |
【Guide to Use and Installation】
Storage requirements: Dry and ventilated indoors, avoid heavy pressure (stack height ≤ 2.5 meters)
Cutting tools: Electric cutting knife is recommended
Installation process:
▸Pipe insulation: staggered overlap + stainless steel belt bundling (spacing ≤ 300mm)
▸Wall filling: reserve 5% expansion space to avoid thermal bridge effect
【FAQ】
Q1: Will the pink color fade?
→ Color difference ΔE＜1.5 after 10 years of outdoor use
Q2: Can special sizes be customized?
→ Customization is possible to the maximum extent possible according to your needs
Q3: How to calculate the amount?
→ Contact us at catherine@iking-glasswool.com to help you solve/calculate more and save you money
